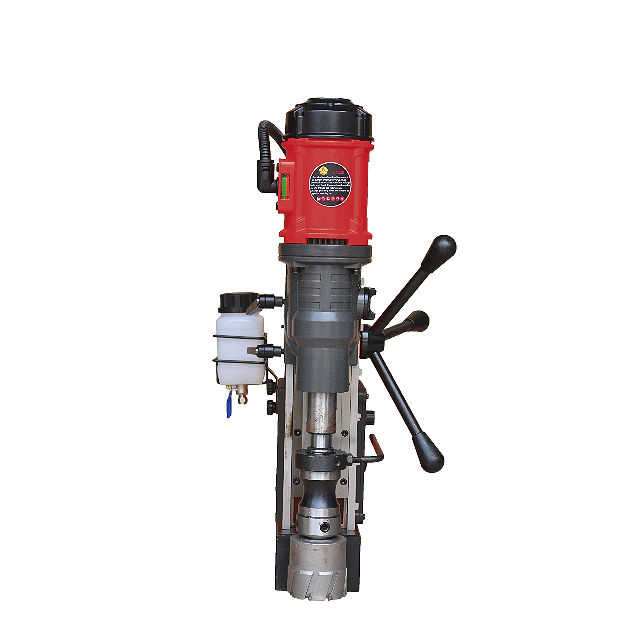

Magnetic Core Drill

Double dovetail groove, long stroke, small size
All die-cast magnesium alloy frame in light weight
Liquid oil
High magnet force

TECHNICAL PARAMETER

	Core drill dia(mm)	Twist drill dia(mm)	Tapping drill dia(mm)	Rated Voltage(v)	Rated Frequency(Hz)	Rated Input Power(w)	Max attraction(N)	No-load Speed(rpm)	Cutting depth(mm)	Morse taper	Stroke(mm)	Net/Gross Weight(kgs)	Packing Weight(cm)
OB-1000A	100	26	M24	110/220~	50-60	2380	14800	100-125/290/600	40	MT3	220	28/32	652040
OB-1200A	120	28	M26	110/220~	50-60	2480	15600	100-135/300/690	50	MT3	220	29/33	652040
